GEN Series & ZUP Series
 글쓴이 : 관리자
조회 : 913
   genesys.pdf (1.8M) [145] DATE : 2011-06-01 16:38:17
   Gen-3U_(10kw~15kw).pdf (1.1M) [19] DATE : 2011-07-18 00:53:48
   zup series.pdf (1.4M) [57] DATE : 2013-01-02 15:07:54
   Z+ series.pdf (4.6M) [33] DATE : 2013-01-03 13:16:07

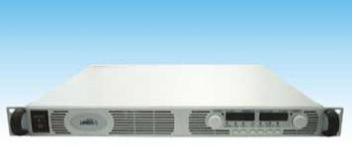

              Genesys 1U Series



Genesys Series

   Features

  • Highest power density 2400W available in 1U size.
  • Output voltage up to 600V, Output current up to 400A.
  • Built in RS323/RS485 Interface (optional GPIB)
  • Miniaturization with heat dissipation design.
  • Front panel will intake the air and release it through the back panel makes stacking is possible.
  • Built-in 16 bit high resolution A/D D/A converter.
  • Last Setting Memory.
    The last setting will be saved after the power is OFF. There's unessecary to do resetting again during swicth on.
  • Parallel operation with active current sharing.




  Genesys2U Series


  • Features

    • Highest power density 5000W available in 2U size.
    • Output voltage up to 600V, Output current up to 400A.
    • Built in RS323/RS485 Interface (optional GPIB)
    • Miniaturization with heat dissipation design.
    • Front panel will intake the air and release it through the back panel makes stacking is possible.
    • Built-in 16 bit high resolution A/D D/A converter.
    • Last Setting Memory.
      The last setting will be saved after the power is OFF. There's unessecary to do resetting again during swicth on.
    • Parallel operation with active current sharing.




             ZUP-Series

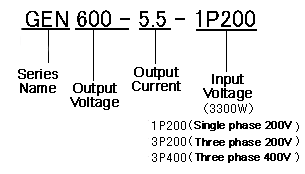

               Model name

      ZUP-SERIES

      Features

      • Programmable power supply
        Constant voltage / Constant current
      • Built-in RS232 & RS485 interface
        GP-IB interface : Option
      • External voltage or resistor programming
      • Last setting memory with safe restart or automatic
        restart modes
      • Input current harmonics : EN61000-3-2 Class A




              Z+ Series



        Model name

        Z+-SERIES

      Features

      • 2U High
      • USB, RS232/485, Analogue Control and Monitoring
      • LAN, GPIB, Isolated Analogue Interface Options
      • Rack or Bench Mount
      • 16 bit resolution and fast programming response
      • Built in arbitrary function generation and storage
      • User programmable output signal pins
      • 5 year warranty
