PFE-S / PFE-F Series
 ۾ :
ȸ : 1,199
   pfe_s.pdf (995.9K) [80] DATE : 2011-06-01 16:41:05

PFE-S Series (Single output AC-DC converter 300W-700W)

PFE700-SERIES



  PFE700-SERIES





Features

  • PFHC and DC-DC converter are consolidated in Full Brick size.
  • Wide input voltage range (85-265VAC)
  • High power factor (95%), High efficiency 86% max (PFE300S,500S) 89 max (PFE700S)
  • PFHC module (EN61000-3-2)
  • Wide baseplate temperature (-40+100C)
  • Stabilization Output(PFE300S500S) and High-power semiregulation (PFE700S)
  • Paralle operation (PFE700S)

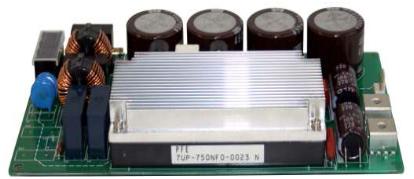

                   PFE Series Power Module mounted on Evaluation
                     Board with heatsink and external components



    PFE-F Series (Single output AC-DC converter 500W-1000W)

    PFE-F-SERIES



    Model name

    PFE700-SERIES



    Features

    • High power factor (95%), High Effeciency (86%)
    • Wide Input voltage range (85-265VAC)
    • PFHC module(EN61000-3-2)
    • Wide baseplate temperature (-40+100C)
    • N+1 parallel redundant operation, Series operation, Remote sensing, Remote on/off control.
    • Withstand Surge Normal / Common mode 6kV(At use, Absorber and Input filter)
